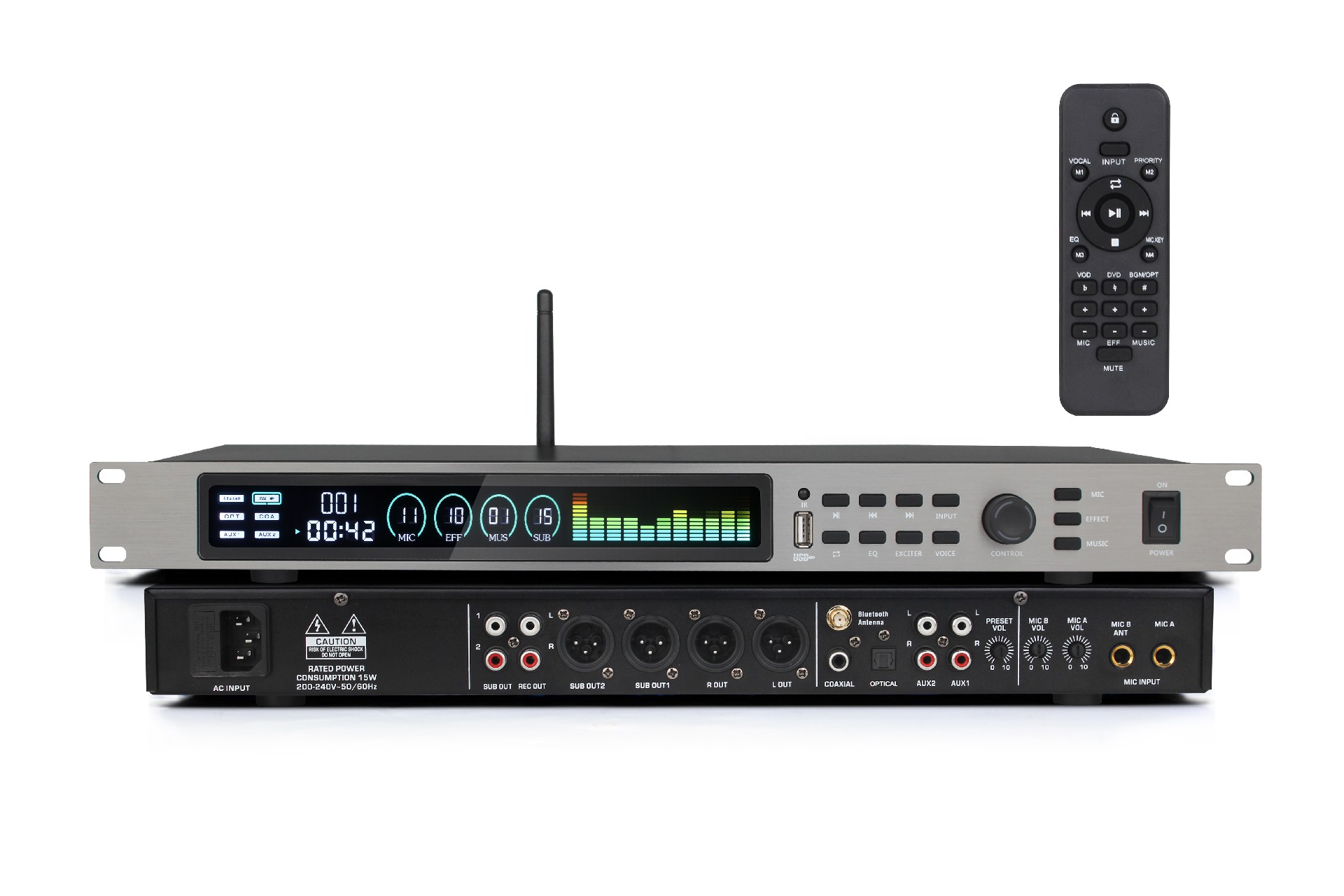

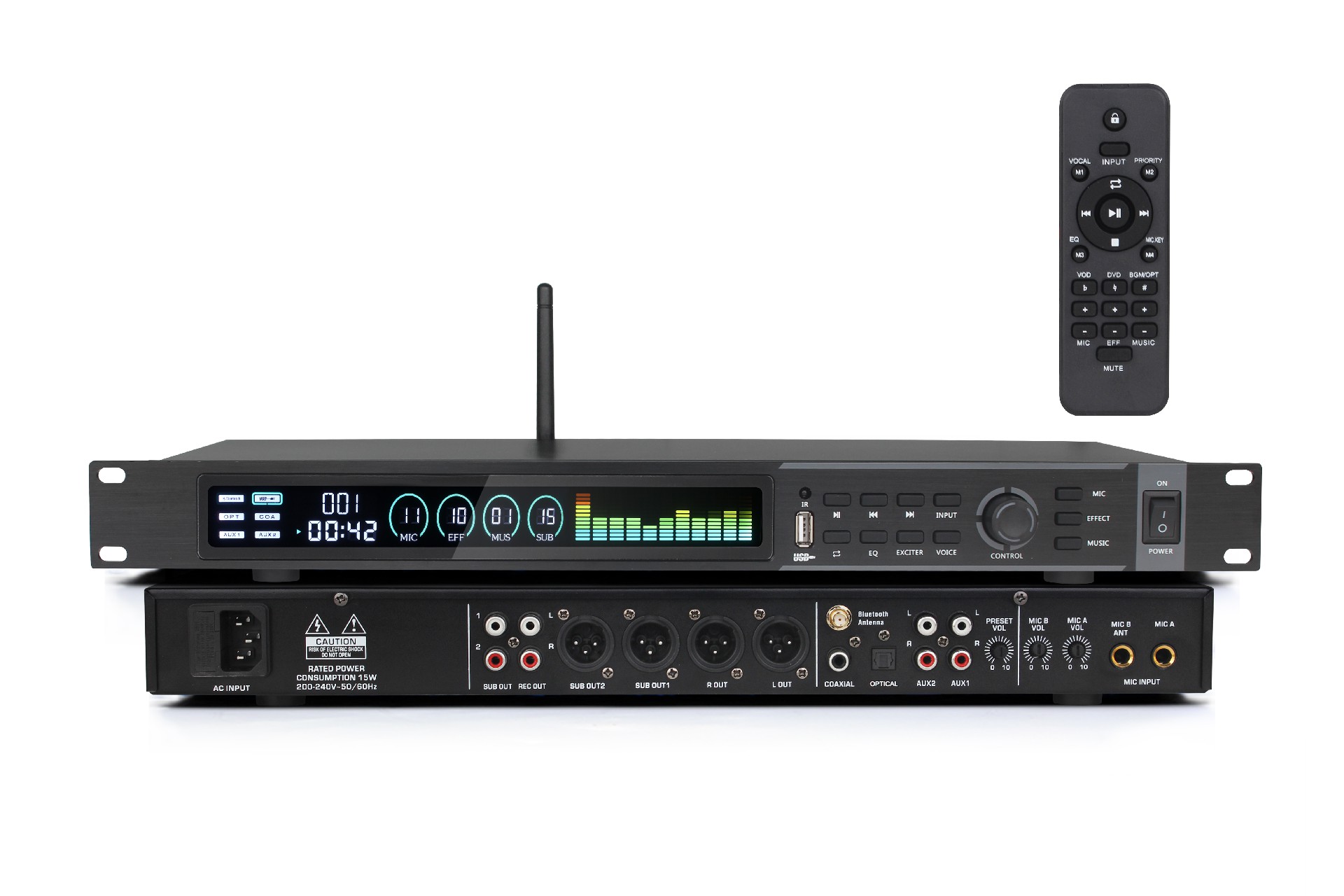

Type: FX30 Digital Pre Effect Device

Output channels: left and right main output, bass output

Effect: Dual Echo+Reverb DSP Effect

microphone

-Input connector: 1/4 TRS balanced input impedance; 2K ohms

-Frequency response: 20Hz to 30kHz+/- 1dB(max/min)

-Total harmonic distortion: 0.015% in+4dBu, 1kHz

-Noise:<- 80 dB

-High frequency equalizer:+/- 10dB/10kHz IF equalizer:+/- 10dB/2kHz-

Low frequency equalizer:+/- 10dB/100Hz

Output Connection

-Line output: RCA

-Output impedance: 20k ohms

-- Output sensitivity: 0.775V

music

-Input connector: RCA unbalanced

-Input impedance: 30K ohms

-Frequency response: 20Hz to 30kHz+/- 1dB(max/min)

-Total harmonic distortion: 0.015% in+4dBu, 1kHz noise:<- 85dB-

-High frequency equalizer:+/- 10dB/10kHz IF equalizer:+/- 10dB/2kHz low frequency average

Weighing apparatus:+/- 10dB/100Hz

Bass output

-Adjust low frequency: 30 Hz- 300Hz,- 18dB/oct-

-THD distortion: 0.015% in+4dBu, 1kHz-

-Output impedance: 100ohms

Power supply: AC 110~240V 50 or 60Hz

Power: 15W

Dimensions: 483mm × 44mm × 157mm

Net weight: 1.85KG

Total weight: 2.45KG
