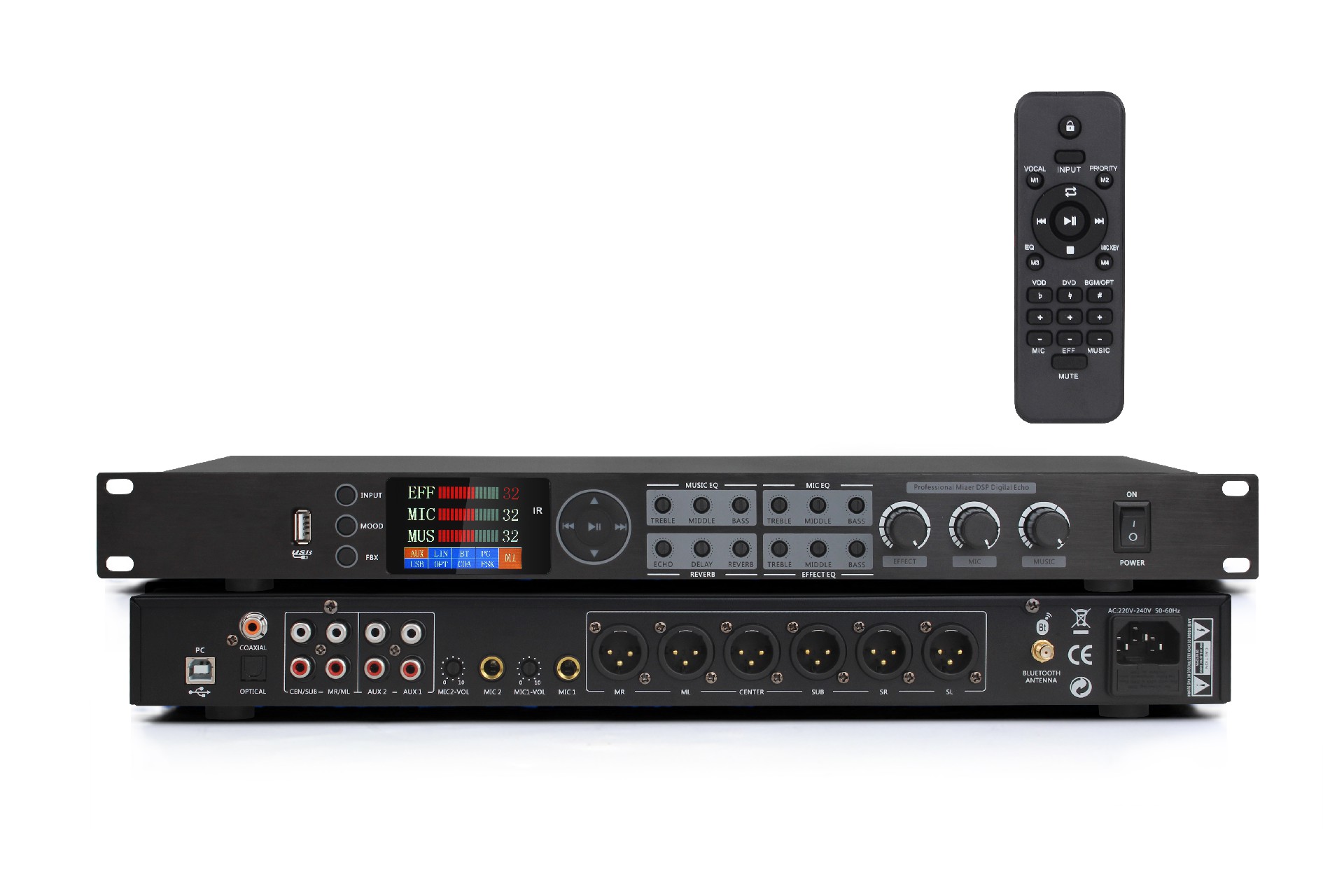

Type: KX380 Digital Front End Effect Device

Output channels: left and right main output, bass output, surround sound output

Effect: Dual Echo+Reverb DSP Effect

TECHNICAL INDEX

Input impedance:> 10kΩ

Output impedance:< 100Ω

PC interface: USB interface

Input range: ≤+ 14dBu

Frequency response: 20Hz-20KHz(-0.3dB)

Noise (A-weighted): 29.1uV (-88.5dBu)

Distortion degree:< 0.1% 1kHz, 0dBu A weighted

Sampling rate: 48K

Input channel function

Input mute: separate mute control

Input volume: Range:- 60dB -+6dB, step distance: 1dB

Input Equalizer: Input PEQ, 15 segments per channel. Parameter Equalizer Gain:- 24dB-+12dB

Input noise gate: threshold -70dB -0dB

Output channel function

Output mute: Each channel is equipped with a separate mute control

Output volume: Adjustment range:- 60dB -+6dB, with a step size of 1dB

Output delay: Each output channel has a separate delay control, with an adjustment range of 0-30ms and a step size of 1ms

Output phase: in-phase (0) or out of phase (180)

Frequency divider setting: Each output channel can be separately set with a low-pass filter (LPF) and a high filter (HPF), with a frequency division of 20-20KHz, a division slope FLAT THRU, 12dB, 24dB, 36dB, 48dB, and a division type Butterworth Bessel、

Linkwitz-Riley

Voltage limiter setting: Start level:- 96DB~0DB, release time: 1-3000ms

Output equalization: PEQ output, 31 segments per channel, parametric equalizer gain:- 24dB -+12dB, with a step size of 0.1dB EQ type PEQ Low shelf, High shelf optional

Processor: 48KHz sampling frequency, 24 bit DSP processor, 24 bit A/D and D/A conversion

Power supply: AC 110~240V 50 or 60Hz

Power: 15W
