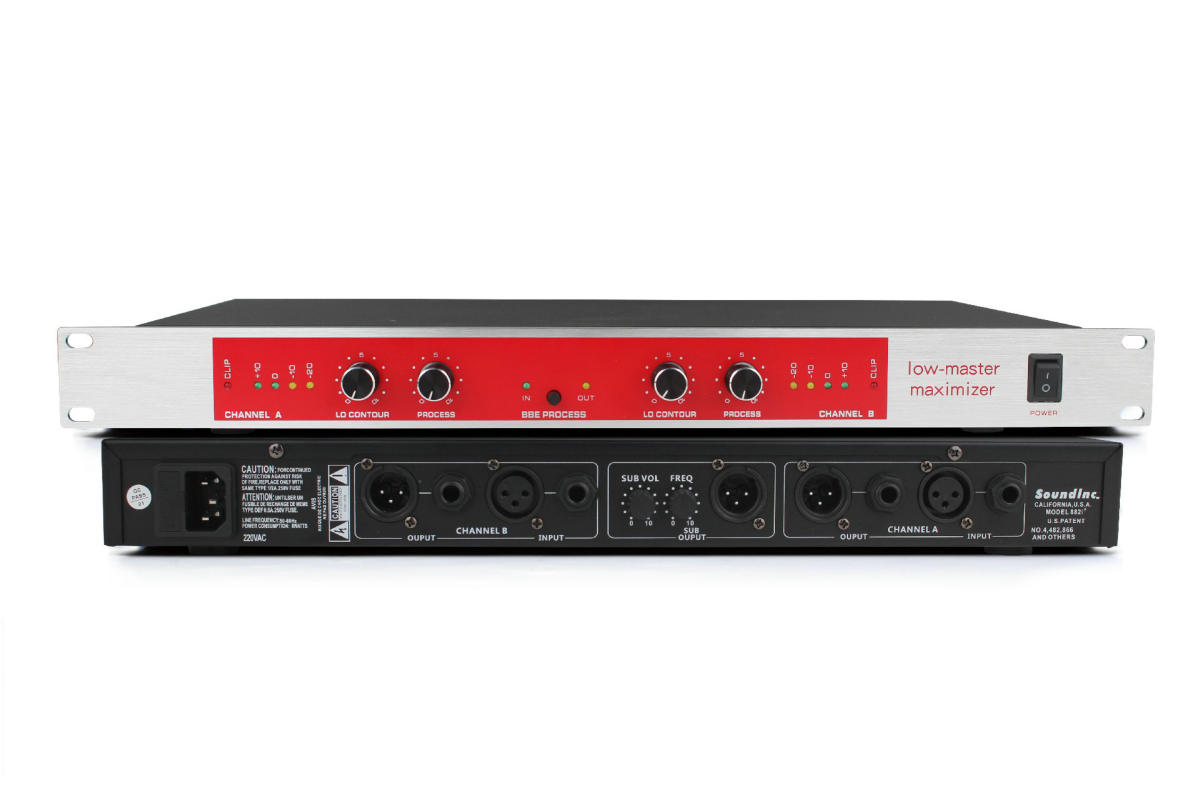

Type: Audio exciter

Processing mode: controlled by the program

Bypass mode: 10Hz~50kHz,+/-0.5dBu, 0dBu input

Signal to noise ratio: 115dB in processing

Total harmonic distortion rate in processing mode: less than 0.025% at 20~20kHz

Total harmonic distortion rate in bypass mode: less than 0.002% at 20~20kHz

Maximum output:+23dBu (varies depending on control settings)

Input impedance: 14.7K Ohms, balanced 1/4 "stereo headphone jack or XLR jack

Pin 2 is a hot or "+" signal

Output impedance: 600 Ohms, balanced 1/4 "stereo headphone jack or XLR jack,

Pin 2 is a hot or "+" signal

Sensitivity: Maximum processing time -45dBu

Maximum processing:+12dBu, increased at 5kHz, 0dBu input

Lo curve:+12dBu, adjustable at 50Hz and 0dBu input

Bass output

-Adjusting low frequency: 30 Hz, -300 Hz, -18 dB/oct-

-THD distortion: 0.015% in+4dBu, 1kHz-

-Output impedance: 100ohms

Power supply: AC 110-240V 50 or 60Hz

Size: 485mm x 45mm x 218mm

Net weight: 2.3KG

Total weight: 2.9KG
