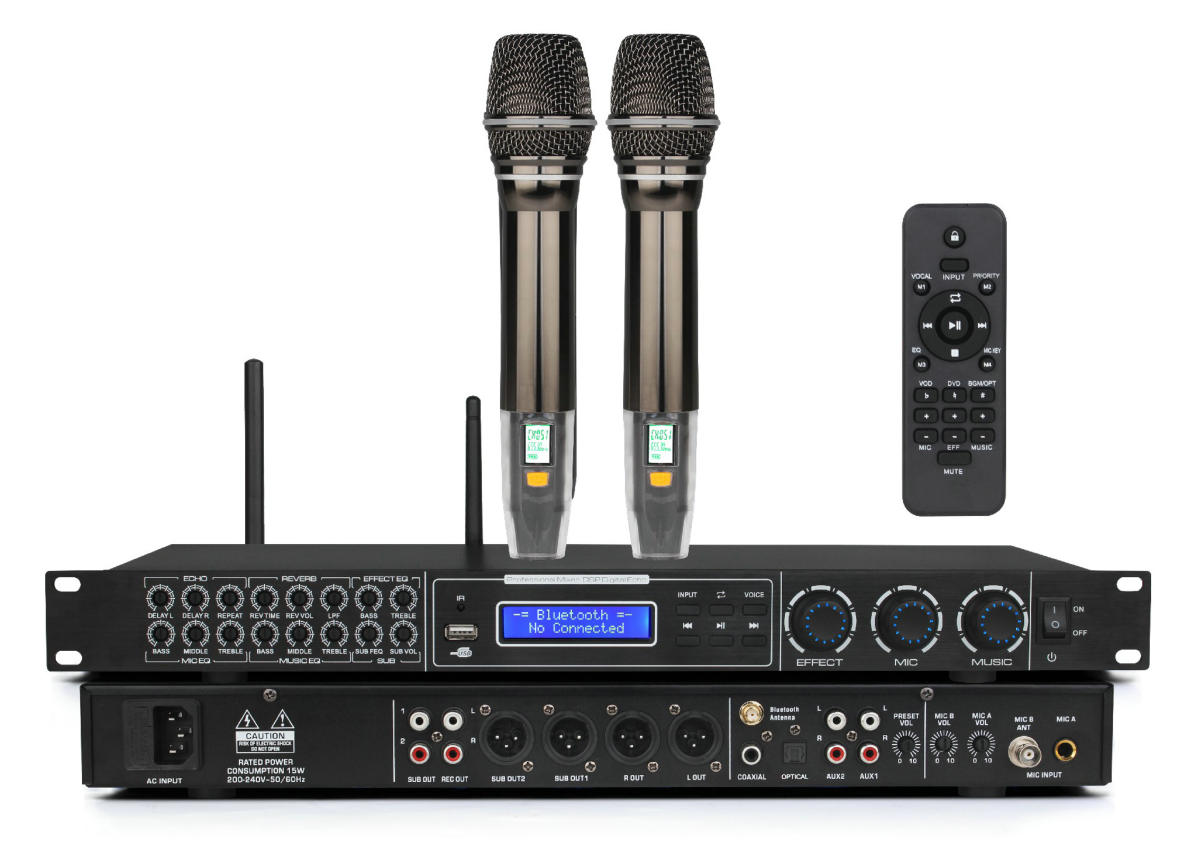

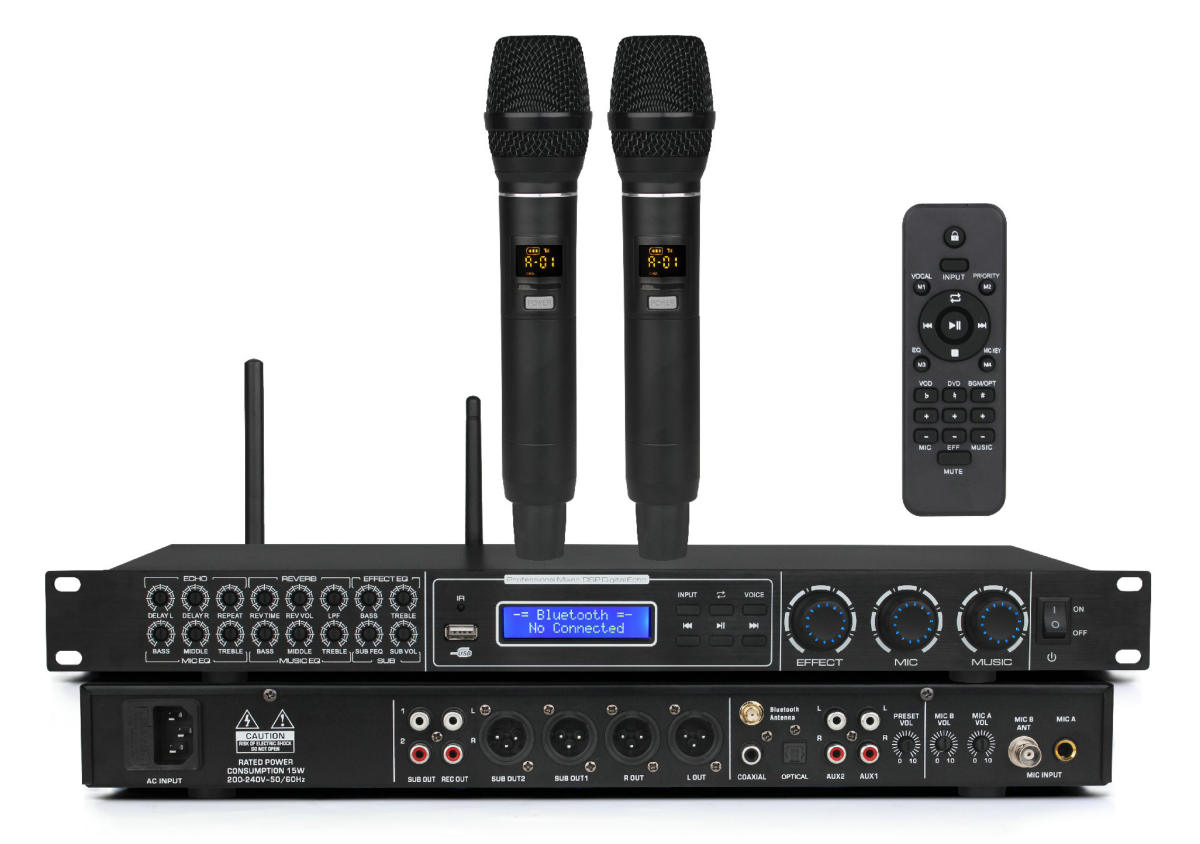

Type: FX10 Digital Front Effector

Output channels: left and right main outputs, bass outputs

Effect: Double echo+reverb DSP effect

microphone

-Input connector: 1/4 TRS balanced input impedance; 2K ohms

-Frequency response: 20Hz to 30kHz,+/-1dB (max/min)

-Total harmonic distortion: 0.015% in+4dBu, 1kHz

-Noise:<-80 dB

-High frequency equalizer:+/-10dB/10kHz - Medium frequency equalizer:+/-10dB/2kHz-

Low frequency equalizer:+/-10dB/100Hz

Output Connection

-Line output: RCA

-Output impedance: 20k ohms

-- Output sensitivity: 0.775V

music

-Input connector: RCA imbalance

-Input impedance: 30K ohms

-Frequency response: 20Hz to 30kHz,+/-1dB (max/min)

-Total harmonic distortion: 0.015% in+4dBu, 1kHz noise:<-85dB-

-High frequency equalizer:+/-10dB/10kHz Medium frequency equalizer:+/-10dB/2kHz Low frequency equalizer

Scale:+/-10dB/100Hz

Bass output

-Adjusting low frequency: 30 Hz, -300 Hz, -18 dB/oct-

-THD distortion: 0.015% in+4dBu, 1kHz-

-Output impedance: 100ohms

Power supply: AC 110-240V 50 or 60Hz

Power: 15W

Size: 483mm x 44mm x 157mm

Net weight: 2.1KG

Total weight: 3.8KG
