Type: L48 series audio processor

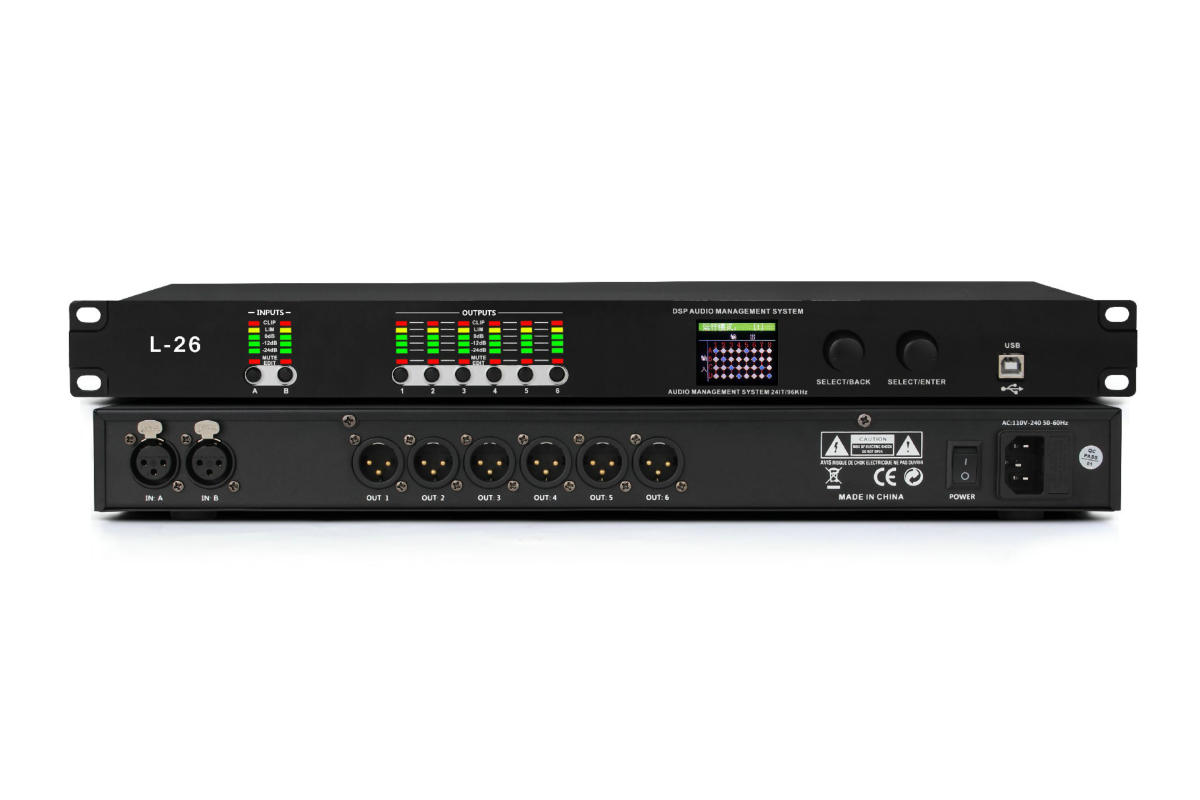

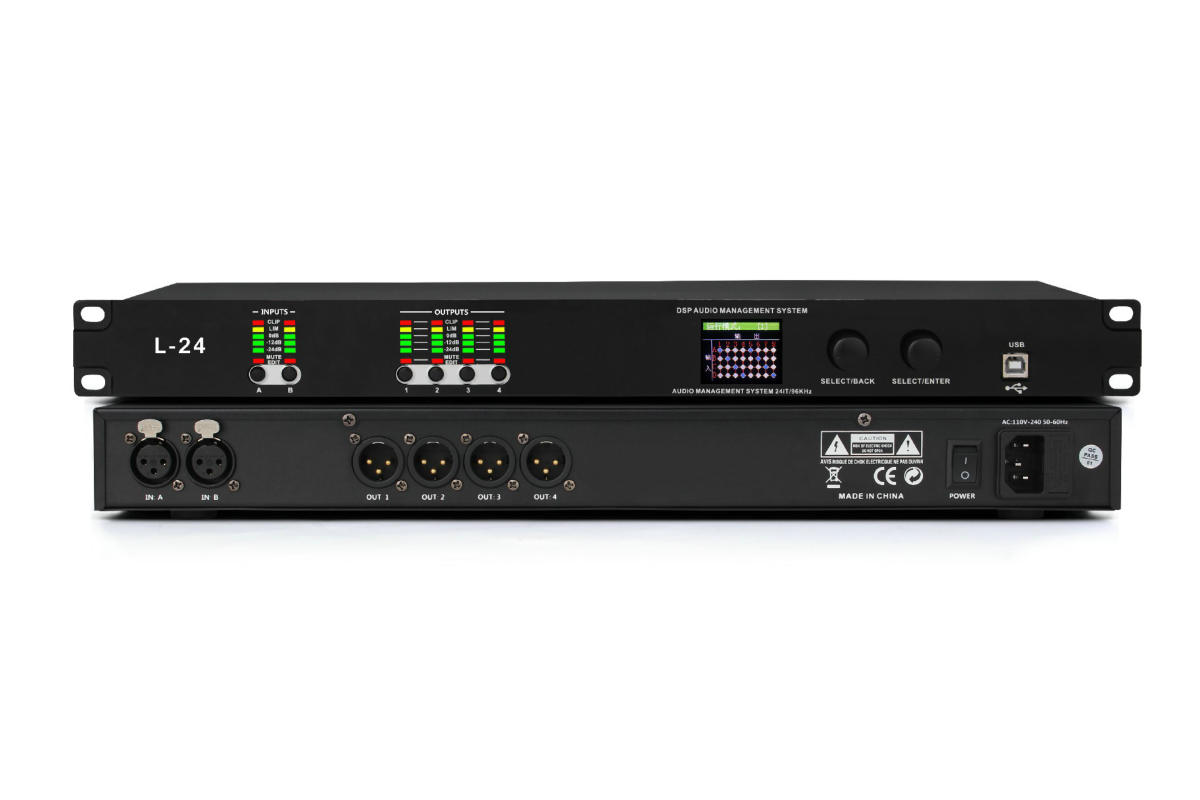

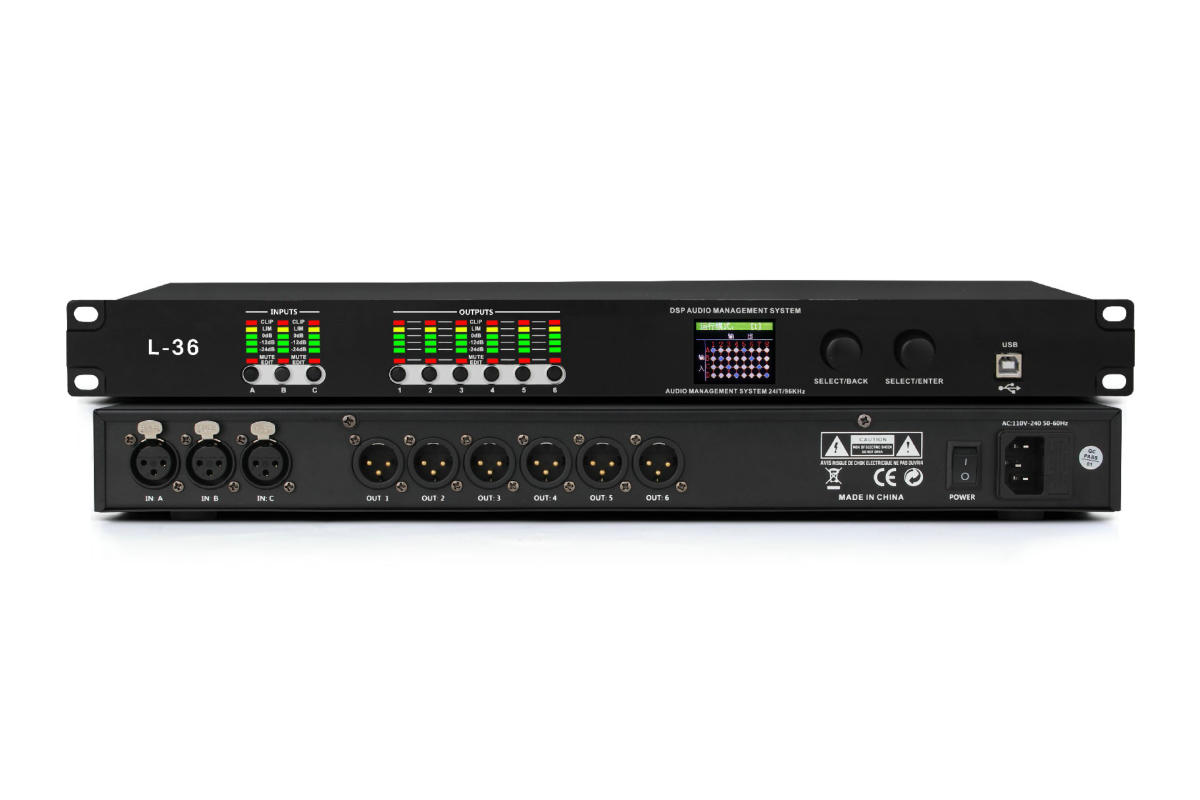

Input/output channels: 2 in 4 out, 2 in 6 out, 2 in 8 out, 3 in 6 out, 4 in 8 out

Each input channel function:

Mute each channel with separate mute control

Each input channel has independent delay control, with a delay value of 0-1486.05MS and a step distance of 0.01MS

Same polarity (+) reversed polarity (-)

Each balanced input channel has 11 PEQ segments, and the parameters adjusted in PEQ state are: center frequency point: 20Hz-20KHz, step: 1Hz, gain: ± 12dB, step: 0.1dB Q value: 0.5 to 6.0

Each output channel function:

Mute Each channel has independent mute control

Mixing each output channel allows for individual selection of different input channels, as well as any combination of input channels with a gain of ± 12dB and a step distance of 0.1dB

Delay 0-1486.05MS

Same polarity (+) reversed polarity (-)

Each channel can be balanced with 11 levels, with PEQ/LO shelf/Hi shelf options available

Divider Low Pass Filter (LPF), High Pass Filter (HPF), Filter Type (PFMODE): LinkwitzRiley/Basel/Butterworth, Divider Point: 20Hz-20KHz

Attenuation slope: 6dB/oct, 12dB/oct, 18dB/oct, 24dB/oct, 30dB/oct, 36dB/oct, 42dB/oct, 48dB/oct

Limiter: Each output channel can be individually set with a compressor, adjustable parameters are: threshold value: 17~-70dBu, step distance 1dB μ,

Release time: 1ms-200ms; Step distance: 1ms

Input/output interface: Input: XLR female XLR socket Output: XLR male XLR socket

Processor: 255MHz main frequency 48KHz sampling frequency 32 bit DSP processor, 24 bit/D and D/A conversion

Display: 1.77-inch 16 bit true color display screen, LED display input/output matrix

Input impedance: 20K Ω

Output impedance: Balanced 100Q

Input range:<14dBu

Frequency response: 20Hz-20KHz (0-0.5dB)

Signal to noise ratio:>98dB

Distortion:<0.01% (Output=0dB) μ/ 1KHz)

Separation degree:>80dB (1KHz)

PC interface: 1 USB interface on the panel

Power consumption: ≤ 30W

Product size: 480 * 185 * 44mm

Net weight: 2.1KG

Total weight: 2.67KG
